and Reel Option = 0C to +70C Commercial = -40C to+85C Industrial = Standard packaging (tray) = Tape and Reel(1) Examples: a) b) c) d) USB2532-1080AEN, Commercial Temp 36-pin SQFN Pkg., Tray USB2532-1080AEN-TR, Commercial Temp 36-pin SQFN Pkg., Tape & Reel USB2532I-1080AEN, Industrial Temp 36-pin SQFN Pkg., Tray USB2532I-1080AEN-TR, Industrial Temp 36-pin SQFN Pkg., Tape & Reel Note 1: Tape and Reel identifier only appears in the catalog part number description. This identifier is used for ordering purposes and is not printed on the device package. Check with your Microchip Sales Office for package availability with the Tape and Reel option. Reel size is 4,000. 2012 - 2019 Microchip Technology Inc. USB2532 PREVIOUS VERSION ORDERING INFORMATION: TEMPERATURE RANGE PACKAGE TYPE USB2532-1080AEN 0C to +70C 36-pin SQFN USB2532-1080AEN-TR 0C to +70C 36-pin SQFN (Tape & Reel) USB2532I-1080AEN -40C to +85C 36-pin SQFN USB2532-1080AEN-TR -40C to +85C 36-pin SQFN (Tape & Reel) ORDER

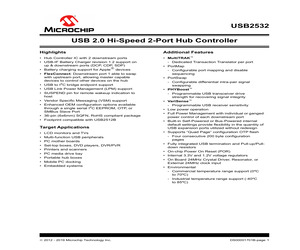

ure range support (-40C to 85C) DS00001701A-page 1 USB 2.0 Hi-Speed 2-Port Hub Controller Datasheet Order Number(s): ORDER NUMBER TEMPERATURE RANGE PACKAGE TYPE USB2532-1080AEN 0C to +70C 36-pin SQFN USB2532-1080AEN-TR 0C to +70C 36-pin SQFN (Tape & Reel) USB2532I-1080AEN -40C to +85C 36-pin SQFN USB2532I-1080AENTR -40C to +85C 36-pin SQFN (Tape & Reel) This product meets the halogen maximum concentration values per IEC61249-2-21 The table above represents valid part numbers at the time of printing and may not represent parts that are currently available. For the latest list of valid ordering numbers for this product, please contact the nearest sales office. TO OUR VALUED CUSTOMERS It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are int

5C) SMSC USB2532 Revision 1.0 (06-17-13) DATASHEET USB 2.0 Hi-Speed 2-Port Hub Controller Datasheet Order Number(s): ORDER NUMBER TEMPERATURE RANGE PACKAGE TYPE USB2532-1080AEN 0C to +70C 36-pin SQFN USB2532-1080AEN-TR 0C to +70C 36-pin SQFN (Tape & Reel) USB2532I-1080AEN -40C to +85C 36-pin SQFN USB2532I-1080AENTR -40C to +85C 36-pin SQFN (Tape & Reel) This product meets the halogen maximum concentration values per IEC61249-2-21 For RoHS compliance and environmental information, please visit www.smsc.com/rohs Please contact your SMSC sales representative for additional documentation related to this product such as application notes, anomaly sheets, and design guidelines. The table above represents valid part numbers at the time of printing and may not represent parts that are currently available. For the latest list of valid ordering numbers for this product, please contact the nearest sales office. Copyright (c) 2013 SMSC or its subsidiaries. All rights reserved. Circuit diagrams a
