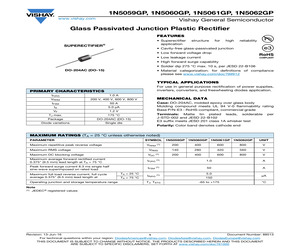

1N5060GP, 1N5061GP, 1N5062GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier FEATURES SUPERECTIFIER * Superectifier application (R) structure for high reliability * Cavity-free glass-passivated junction * Low forward voltage drop * Low leakage current * High forward surge capability * Solder dip 275 C max. 10 s, per JESD 22-B106 DO-204AC (DO-15) * Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 200 V, 400 V, 600 V, 800 V IFSM 50 A IR 5.0 A MECHANICAL DATA Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade VF 1.2 V TJ max. 175 C Package DO-204AC (DO-15) Diode variations Single die Terminals: Matte tin plated leads, solderable J-STD-002 and JESD

1N5060GP, 1N5061GP, 1N5062GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier FEATURES SUPERECTIFIER * Superectifier application (R) structure for high reliability * Cavity-free glass-passivated junction * Low forward voltage drop * Low leakage current * High forward surge capability * Solder dip 275 C max. 10 s, per JESD 22-B106 DO-204AC (DO-15) * AEC-Q101 qualified * Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. IF(AV) 1.0 A VRRM 200 V, 400 V, 600 V, 800 V MECHANICAL DATA IFSM 50 A IR 5.0 A VF 1.2 V TJ max. 175 C Package DO-204AC (DO-15) Diode variations Single die Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/NHE3 - RoHS-compliant, AEC-Q101 qual

1N5060GP, 1N5061GP, 1N5062GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier FEATURES SUPERECTIFIER * Superectifier application (R) structure for high reliability * Cavity-free glass-passivated junction * Low forward voltage drop * Low leakage current * High forward surge capability * Solder dip 275 C max. 10 s, per JESD 22-B106 DO-204AC (DO-15) * Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 200 V, 400 V, 600 V, 800 V IFSM 50 A IR 5.0 A MECHANICAL DATA Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade VF 1.2 V TJ max. 175 C Package DO-204AC (DO-15) Diode variations Single die Terminals: Matte tin plated leads, solderable J-STD-002 and JESD

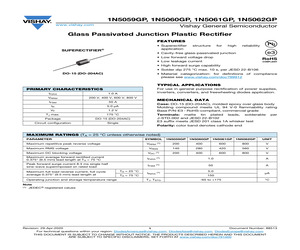

1N5060GP, 1N5061GP, 1N5062GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier FEATURES SUPERECTIFIER * Superectifier application (R) structure for high reliability * Cavity-free glass-passivated junction * Low forward voltage drop * Low leakage current * High forward surge capability * Solder dip 275 C max. 10 s, per JESD 22-B106 DO-15 (DO-204AC) * Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. IF(AV) 1.0 A VRRM 200 V, 400 V, 600 V, 800 V IFSM 50 A IR 5.0 A VF 1.2 V MECHANICAL DATA Case: DO-15 (DO-204AC), molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade TJ max. 175 C Package DO-15 (DO-204AC) Circuit configuration Single Terminals: matte tin plated leads, solderable J-STD-002

horized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Vishay: 1N5062-E3/54 1N5060/4 1N5060-E3/54 1N5061-E3/54 1N5059-E3/54 1N5061/4 1N5059/4 1N5062/4 1N5062GP-E3/1 1N5059GP-E3/1 1N5061GP-E3/1 1N5059GP-E3/54 1N5059GPHE3/54 1N5060GP-E3/54 1N5060GP-E3/73 1N5060GPHE3/54 1N5060GPHE3/73 1N5061GP-E3/54 1N5061GPHE3/54 1N5062GPHE3/54 1N5062GPHE3/73 1N5060TR 1N5062TR 1N5061TAP 1N5059TAP 1N5060TAP 1N5062TAP 1N5061TR 1N5059TR

1N5060GP, 1N5061GP, 1N5062GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier FEATURES SUPERECTIFIER * Superectifier application (R) structure for high reliability * Cavity-free glass-passivated junction * Low forward voltage drop * Low leakage current * High forward surge capability * Solder dip 275 C max. 10 s, per JESD 22-B106 DO-204AC (DO-15) * Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 200 V, 400 V, 600 V, 800 V IFSM 50 A IR 5.0 A MECHANICAL DATA Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade VF 1.2 V TJ max. 175 C Package DO-204AC (DO-15) Diode variations Single die Terminals: Matte tin plated leads, solderable J-STD-002 and JESD

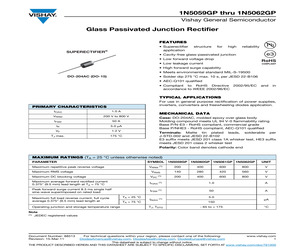

de, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP Maximum repetitive peak reverse voltage (1) Maximum RMS voltage Maximum DC blocking voltage (1) UNIT VRRM 200 400 600 800 V VRMS 140 280 420 560 V VDC 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C (1) IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (1) IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at (1) Operating junction and storage temperature range TA = 25 C TA = 75 C Note: (1) JEDEC registered values Document Number: 88513 Revision: 03-Apr-08 For technical questions within your region, please contact one of the following: PDD-

solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP UNIT VRRM (1) 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V Maximum DC blocking voltage VDC (1) 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C IF(AV) (1) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM (1) 50 A Maximum repetitive peak reverse voltage Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at Operating junction and storage temperature range TA = 25 C TA = 75 C IR(AV) (1) TJ, TSTG 5.0 A 150 - 65 to + 175 C Note (1) JEDEC registered values Document Number: 88513 Revision: 15-Mar-11 For technical questions within your region, please contact one of the following: www.v

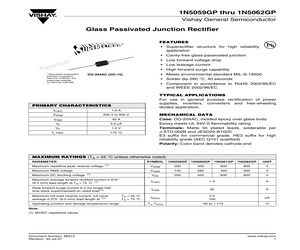

olarity: Color band denotes cathode end Typical Applications For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application Maximum Ratings (TA = 25 C unless otherwise noted) Parameter Symbol 1N5059GP 1N5060GP 1N5061GP 1N5062GP Unit * Maximum repetitive peak reverse voltage VRRM 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V * Maximum DC blocking voltage VDC 200 400 600 800 * Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C IF(AV) 1.0 A * Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C * Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at Operating junction and storage temperature range Document Number 88513 17-Oct-05 TA = 25 C TA = 75 C V www.vishay.com 1 1N5059GP thru 1N5062GP Vishay General Semiconductor Electrical Characteristics (TA = 25 C unless otherwise noted) Parameter

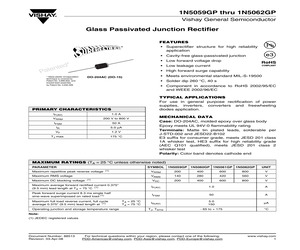

de, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP Maximum repetitive peak reverse voltage (1) Maximum RMS voltage Maximum DC blocking voltage (1) UNIT VRRM 200 400 600 800 V VRMS 140 280 420 560 V VDC 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C (1) IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (1) IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at (1) Operating junction and storage temperature range TA = 25 C TA = 75 C Note: (1) JEDEC registered values Document Number: 88513 Revision: 03-Apr-08 For technical questions within your region, please contact one of the following: PDD-

de, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC-Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP Maximum repetitive peak reverse voltage (1) Maximum RMS voltage Maximum DC blocking voltage (1) UNIT VRRM 200 400 600 800 V VRMS 140 280 420 560 V VDC 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C (1) IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (1) IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at (1) Operating junction and storage temperature range TA = 25 C TA = 75 C Note: (1) JEDEC registered values www.vishay.com 1092 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PD

ds, solderable per J-STD-002B and JESD22-B102D E3 suffix for commercial grade, HE3 suffix for high reliability grade (AEC Q101 qualified) Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP UNIT * Maximum repetitive peak reverse voltage VRRM 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V * Maximum DC blocking voltage VDC 200 400 600 800 V * Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C IF(AV) 1.0 A * Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C * Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at Operating junction and storage temperature range TA = 25 C TA = 75 C *JEDEC registered values Document Number 88513 22-May-06 www.vishay.com 1 1N5059GP thru 1N5062GP Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 C unless o

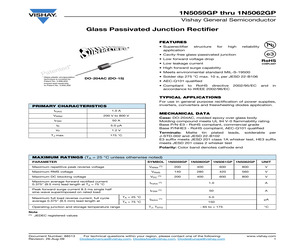

solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP UNIT VRRM (1) 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V Maximum DC blocking voltage VDC (1) 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C IF(AV) (1) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM (1) 50 A Maximum repetitive peak reverse voltage Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at Operating junction and storage temperature range TA = 25 C TA = 75 C IR(AV) (1) TJ, TSTG 5.0 A 150 - 65 to + 175 C Note (1) JEDEC registered values Document Number: 88513 Revision: 26-Aug-09 For technical questions within your region, please contact one of the following: Diode

solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL 1N5059GP 1N5060GP 1N5061GP 1N5062GP UNIT VRRM (1) 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V Maximum DC blocking voltage VDC (1) 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C IF(AV) (1) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM (1) 50 A Maximum repetitive peak reverse voltage Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at Operating junction and storage temperature range TA = 25 C TA = 75 C IR(AV) (1) TJ, TSTG 5.0 A 150 - 65 to + 175 C Note (1) JEDEC registered values Document Number: 88513 Revision: 15-Mar-11 For technical questions within your region, please contact one of the following: www.v

gh reliability grade (AEC Q101 qualified) Polarity: Color band denotes cathode end MAXIMUM RATINGS (TA = 25 C unless otherwise noted) PARAMETER SYMBOL Maximum repetitive peak reverse voltage (1) Maximum RMS voltage Maximum DC blocking voltage (1) 1N5059GP 1N5060GP 1N5061GP 1N5062GP UNIT VRRM 200 400 600 800 V VRMS 140 280 420 560 V VDC 200 400 600 800 V Maximum average forward rectified current 0.375" (9.5 mm) lead length at TA = 75 C (1) IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (1) IFSM 50 A IR(AV) 5.0 150 A TJ, TSTG - 65 to + 175 C Maximum full load reverse current, full cycle average 0.375" (9.5 mm) lead length at (1) Operating junction and storage temperature range TA = 25 C TA = 75 C Note: (1) JEDEC registered values Document Number: 88513 Revision: 30-Jul-07 www.vishay.com 1 1N5059GP thru 1N5062GP Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 C unless otherwise noted) PARAMETER TEST CONDITIONS Max. instantaneous forwa
